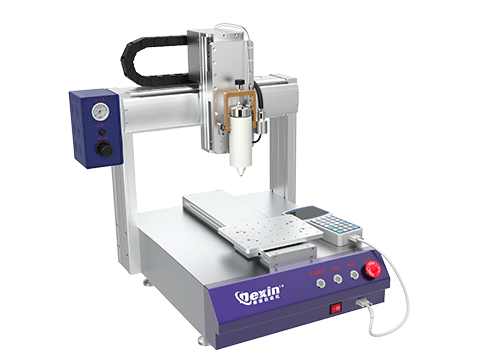

DEX-300

Hot melt adhesive injecting machineTechnical parameters:

model: DEX-300

Processing range: 300/300/100mm

Maximum load: 5kg

Mobile speed: 0.1-500/250mm

Program recording capacity: 999 sets, 4000 points per set

Data storage method: CF Card

Display mode: Teach Pendant LCD

Motor system: Three phase micro stepper precision motor

Operation mode: PTP & CP

Sports interval function: 3axis (any path in 3D stereoscopic space is available)

Editing mode: Teaching box/PC

I/O signal port: 8Input/8Output

External control interface: RS232

Heating temperature: 0-300 ℃

Temperature error range:/- 2℃

Working voltage: AC220V/50-60HZ/300W

Working environment: temperature 10-40 ℃/humidity 20-90% no conditioning

Dimensions: 583 * 561 * 645mm

Hot melt adhesive injecting machinemachine performance

1. Chinese keyboard operation, easy to learn and understand;

2. It has the ability to draw points, lines, surfaces, arcs, and circles Functions such as continuous interpolation of irregular curves and three-axis linkage;

3. The software has functions such as area array, translation and rotation operations;

4. The size, thickness, coating speed, dispensing time, and stopping time of the adhesive can all be set as parameters, and the adhesive output is stable without any leakage or dripping;

5. According to the process requirements, workbench positioning PIN, glue gun or bottom plate heating and temperature control device can be installed

6. Suitable for fluid dispensing, such as: UV glue, hot melt adhesive, AB glue, EPOXY (black glue), white glue, EMI conductive glue SILICON、 Epoxy resin, instant adhesive, silver adhesive, red adhesive, solder paste, heat dissipation paste, solder paste, transparent paint, screw fixing agent, etc

7. Suitable for: mobile phones, Bluetooth earphones, camera modules, tablets, ink cartridges, PC boards LCD、LED、 Smart locks, smart speakers, connectors, relays, heat sinks, semiconductors, and other electronic products that require liquid products, as well as fast point/glue connections with SMT equipment, clocks, toys, medical equipment, and other industries
